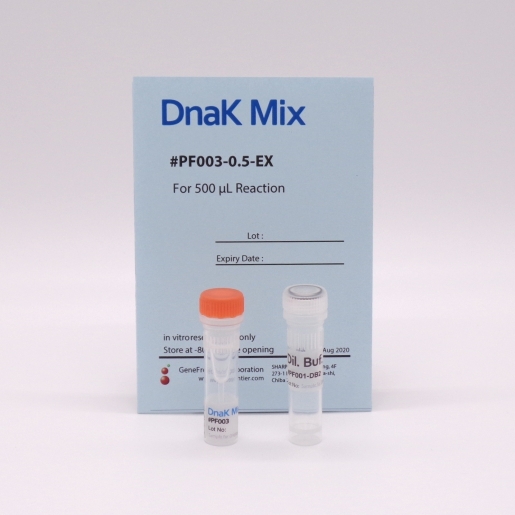

DnaK Mix

Supplements - Chaperones -

DnaK Mix


Size Price (USD)
500 µL $158.00


Size Price (USD)
5x 2 mL $2538.00

International sales of GeneFrontier's products are carried out by Cosmo Bio USA.

Ordering through the online e-commerce system is available only to customers in the USA and Canada.



DnaK Mix is newly developed supplements for PUREfrex® series (Cell-free protein Synthesis Kits) to assist proper folding and improving solubility of the protein that needs molecular chaperones for proper protein folding, since PUREfrex® series (Cell-free protein Synthesis Kits) do not contain molecular chaperones.

DnaK Mix is consisted of highly purified DnaK, DnaJ and GrpE from E.coli with optimized ratio. DnaK known as Hsp70 has ATPase activity and is stimulated by co-chaperones, DnaJ and GrpE. DnaJ facilitates the ATPase activity of DnaK and could bind to a hydrophobic region of synthesized protein. GrpE stimulates ADP/ATP exchange rate of DnaK.

DnaK Mix works very well with PUREfrex® series (Cell-free protein Synthesis Kits) and DsbC Set (Supplement for forming disulfide bonds) in a same tube for protein synthesis reaction, which could lead to the preparation of your protein in proper folding with good solubility according to the character of your protein.

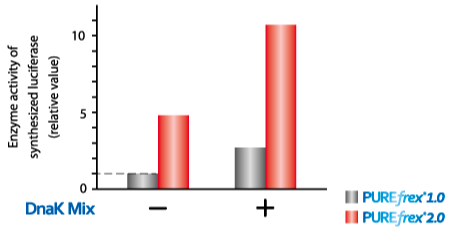

Figure. Effect of DnaK Mix on the activity of synthesized luciferase.

Experiment Workflow

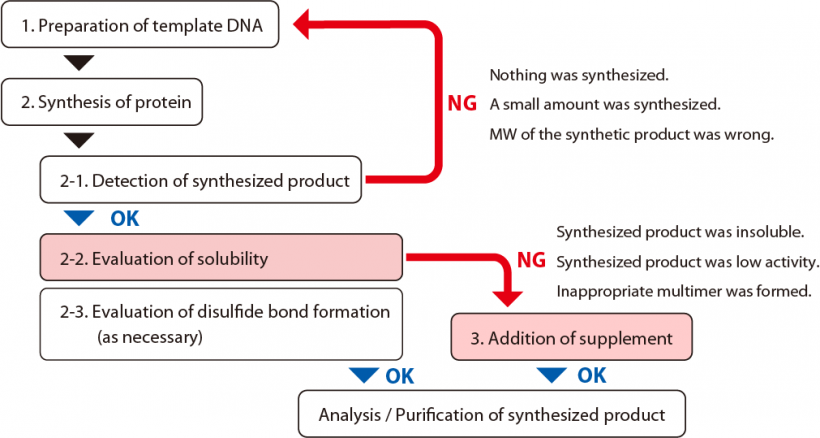

General procedures for using PUREfrex® to synthesize functional proteins are shown in Figure.

Start by preparing the template DNA suitable to the protein synthesis with PUREfrex® and examine whether the protein of interest is synthesized. Redesign the nucleotide sequence of the template DNA if too little protein is synthesized.

Add DnaK Mix as supplement to PUREfrex® reaction mixture if the solubility or activity of the synthesized protein is low.


The amounts given are for 20 µL reaction with PUREfrex®2.0. For scaling up the reaction, adjust the volume of reagents accordingly.

1. Thaw Solution I by incubation at room temperature or 37 °C for 1 minute for completely dissolving, and then cool on ice.

2. Thaw Solution II, III and DnaK Mix on ice.

3. Mix Solution I, II, III and DnaK Mix by vortex and centrifuge briefly to collect each solution at the bottom.

4. Assemble the reaction mixture in a tube as follows. Add the template DNA to 1 - 3 ng/µL per 1 kb.

Water 6-X μL
Solution I 10 μL
Solution II 1 μL
Solution III 2 μL
DnaK Mix *1 1 μL
Template DNA
X μL
Total 20 μL

5. Incubate the tube at 37 °C for 2 - 6 hours on a heat block or a water bath.

6. Analyze the synthesized products. Please add the same amount of H2O to the reaction for the sample of SDS-PAGE.

  1. The optimum concentration of DnaK Mix depends on a protein. Please use "Dilution buffer" (in the kit) to dilute the DnaK mix.


Kit components   <DnaK Mix>

Reagent Quantity
for 500 μL rxn
for 2 mL x 5 rxn
Description Storage *1
DnaK Mix
25 µL 100 μL x 5 100µM DnaK, 20µM DnaJ and 20µM GrpE from E.coli in 30% glycerol buffer (No tags)
-80 °C *2
Dilution buffer
500 µL 500 μL x 1 30% glycerol buffer
-20 °C
  1. Indicated temperature shows storage temperature after opening the kit. Please store the kit at -80 °C before opening.
  2. The rest of solution should be frozen rapidly in liquid nitrogen or dry ice/ethanol, and be stored at -80 °C. Divide into aliquots, if necessary, and avoid refreeze and thaw as much as possible.








Dnak Mix is developed for in vitro research only. Dnak Mix should not be used for the therapy, diagnostic or administration to animals including human and should not be used as food or cosmetics etc. To avoid the contamination of nuclease, nuclease-free-treated water, reagents and materials should be used. We also recommend wearing gloves and mask.

"PUREfrex® is Registered in U.S. Patent and Trademark Office"


On the Resources page, you can find posters and technical notes about PUREfrex®.
Additionally, there are papers that use PUREfrex® or PURE system technology.
